AtomStack Kraft 40W Diode Laser Cutter & Engraver
The AtomStack Kraft 40W Diode is a high-power enclosed laser cutter and engraver built for makers, engineers, schools, and workshop users who want faster cutting, cleaner engraving, and a more professional workflow. With a 40W diode laser, Class 1 enclosed design, 16 MP camera, and support for popular software including LightBurn and LaserGRBL, this machine is positioned as a strong upgrade for users ready to move beyond hobby-level open-frame lasers.
It is designed to cut and engrave a wide range of materials including wood, dark acrylic, leather, and more, with reported capability of cutting wood up to about 18 mm and dark acrylic up to about 15 mm in a single pass on official product materials. That makes it attractive for signs, gifts, school projects, prototyping, and short-run custom production.
A powerful diode laser cutter for makers and businesses
Cut materials up to 18 mm in a single pass
A powerful laser cutter for makers and businesses
Cut and engrave a wide variety of materials
The AtomStack Kraft 40 W makes it simple to take on a vast range of projects.
Cut & engrave
wood
cut & engrave
bamboo
cut & engrave
leather
cut & engrave
dark opaque acrylic
cut & engrave
MDF
cut & engrave
cardboard
cut & engrave
kraft paper & paper
cut
fabric
cut & engrave
denim
engrave
felt
cut & engrave
cork
cut
brushed stainless steel
engrave
stone (shale, brick, marble, jade,...)
engrave
ceramics
engrave
plastic (PP, PE)
engrave
PCB board
engrave
Want to engrave more metals or jewelry?
While the Kraft 40 W is our powerhouse for deep cutting at a higher speed, it uses a blue diode laser. For high-contrast engraving on gold, silver, or bare steel, check out the AtomStack Kraft dual laser cutter & engraver with its dual 20 W diode laser and 1.2 W infrared laser for engraving.
Why customers buy it
Higher power for real cutting performance
The 40W diode output gives users stronger cutting ability than lower-power diode systems, helping reduce passes and improve throughput on thicker materials. Official listings position it for heavy wood and acrylic work compared with lighter hobby units.
Safer enclosed workflow
The enclosed Class 1 structure, lid detection, tilt detection, emergency stop, and fire-safety features make it easier to place in maker spaces, engineering labs, and supervised education environments than open-frame designs.
Camera-assisted precision and faster setup
A 16 MP camera helps with positioning and job alignment, which is especially useful for batch engraving, scrap material placement, and reducing setup errors.
Fast operation for makers and small business use
With speeds listed up to 600 mm/s, the Kraft 40W is aimed at users who need more than occasional crafting and want a machine that can handle repeatable project work more efficiently.
Flexible software compatibility
Support for AtomStack Studio, AtomStack App, LightBurn, and LaserGRBL helps users work in the software they already know instead of being locked into one ecosystem.
Best fit for
- Hobby makers ready to upgrade from entry-level lasers
- STEM and maker programs needing a more protected enclosed unit
- Engineers and prototyping teams creating wood, acrylic, leather, and labeling projects
- Small businesses making signs, personalized products, fixtures, and short-run custom items
Typical applications
- Wood signs and decor
- Dark acrylic projects
- Leather goods and branded items
- Classroom design projects
- Prototype marking and labeling
- Personalized gifts and small-batch production
Key features
- 40W diode laser
- Enclosed Class 1 safety design
- 16 MP HD camera
- Up to 600 mm/s max speed
- Approx. 500 × 320 mm working area
- One-key autofocus
- LightBurn / LaserGRBL compatible
- Supports common file formats such as DXF, JPG, PNG, BMP, SVG, GIF
Important note
Material results vary based on color, density, coatings, air assist, settings, and ventilation setup. For schools and first-time buyers, the real sales lever is not just “40W,” it is safer enclosure + easier alignment + broader project range. That is what helps conversion.
Higher cutting performance
The AtomStack Kraft 40 W is built for makers, designers, and small businesses who demand high power and unmatched speed. Built to handle ambitious large-scale projects, this laser cutter delivers the power to slice through thicker materials in a single pass, drastically cutting production time on every project.
Create with the AtomStack Kraft
Advanced features for a perfect finish
AI Batch engraving
With its batch engraving function, the AtomStack Kraft 40 W lets you engrave multiple items in a single setup. Simply position your materials once, and the machine takes care of the rest. This saves time, reduces errors, and dramatically boosts efficiency for both creative projects and production runs.
Built-in 16 MP HD camera
The built-in camera achieves 0.5 mm positioning accuracy to reduce waste and simplify alignment.
One-click switch between cutting and engraving
Don't let the 40 W label limit you. Lower the output to 20 W with a single click in the software for crisp, fine engraving, or unleash full power for cutting thicker materials in a single pass.
One-touch autofocus
The advanced autofocus system delivers pinpoint accuracy in seconds. No guesswork, just faster setup and sharper creations.
Fast & quiet
Dual-shaft guide rails on both axes ensure whisper-quiet operation and blazing speeds up to 600 mm/s, guaranteeing smooth motion and professional-grade results.
Power-off resume
Unexpected power outage? No problem. The AtomStack Kraft picks up exactly where it left off, preventing wasted materials.
Design without limits in AtomStack Studio
AtomStack Studio is our free, easy-to-use software that makes creating with your laser engraver effortless. With AI text-to-image tools, smart auto-settings, and a vast library of ready-to-use templates, you can bring ideas to life quickly. Built-in material presets ensure that even beginners can craft professional-quality projects in as little as 10 minutes.
The AtomStack Kraft 40 W is also fully compatible with LightBurn, so you can continue working with the software you know best.
Safe and reliable:Class 1 certified laser
Safety is a top priority, which is why the AtomStack Kraft 40 W is equipped with multiple features to protect you and your workspace.
Flame detection & flame extinguishing air pump
An air-assist pump not only boosts cutting performance but also extinguishes flames for a safer, cleaner workflow.
Class 1 laser safety certified
Use safely without glasses thanks to the fully enclosed design.
Enhanced exhaust system
The integrated exhaust clears smoke and reduces dust.
Auto laser shut-off
Your AtomStack Kraft 40 W will stop all operations when the lid is opened to keep you safe.
Emergency stop
The emergency switch instantly stops your laser cutter when hazards occur.
Key features
High-power laser, broad material reach
Equipped with an advanced 40 W diode laser, the Kraft cuts and engraves a wide range of materials: from thick wood (up to ~18 mm) to dark acrylic (up to ~15 mm) in a single pass, delivering clean cuts and crisp edges.
This power level lets you handle wood, acrylic, leather, plastics, and more without switching modules or tools, giving you more flexibility for creative and professional workflows.
Large workspace & workflow efficiency
The spacious 50 × 32 cm (19.6 x 12.5 inches) work area lets you cut or engrave big pieces or batch-process multiple smaller parts at once. With the optional conveyor feeder, you can expand your workspace even further (80 × 50 cm or 31.5 x 19.6 inches).
Efficient workflow features and autofocus tools keep setup time low and productivity high.
16 MP camera preview
The 16 MP HD camera, with 0.5 mm accuracy, ensures that you are not wasting materials or time on uncalibrated items.
This integrated HD camera simplifies aligning and previewing your work area, ensuring precise placement of your designs every time.
With the AI-powered software, batch engraving is even more efficient as it positions the images on the objects automatically.
Batch engraving
With the batch engraving function, the AtomStack Kraft 40 W lets you process multiple items in a single, streamlined setup.
Simply place your materials on the workbed, position your designs on the screen, and the machine handles the rest. This feature dramatically boosts your efficiency, saving you time, reducing errors, and ensuring every item is engraved with perfect consistency. It’s the ideal solution for scaling up production or running large-batch custom orders.
Automatic resume
Automatically resume your project from the last position after a power outage. The Kraft laser engraver remembers the exact coordinates of the laser head and the progress of your job.
Flame extinguishing air pump & air assist
The air extinguishing air pump on the AtomStack Kraft is a two-in-one system. As a standard air assist, it provides a powerful stream of air that gives you cleaner cuts and fewer burn marks. It also acts as a crucial safety feature: if the machine's sensors detect a flame, the pump automatically extinguishes the flame giving you peace of mind.
Smart software & compatibility
AtomStack Studio is our free all-in-one software solution. With support for iOS, Android, Windows, and macOS, you can work seamlessly on your preferred device.
Import all the file formats that you are used to working with, like DXF, JPG, PNG, BMP, SVG, and GIF.
Already using LightBurn? No problem! The AtomStack Kraft 40 W is fully compatible, giving you the flexibility to work with the software you know best.
Built-in safety design
Designed for maximum safety and comfort, the AtomStack Kraft 40 W features a certified class 1 enclosure with an automatic fire extinguisher and door detection. Status lights and dual emergency stops provide clear operational feedback and dependable protection.
Everything you need to start
This complete starter machine gives you everything needed to begin engraving right away, including a clear user manual and toolkit.

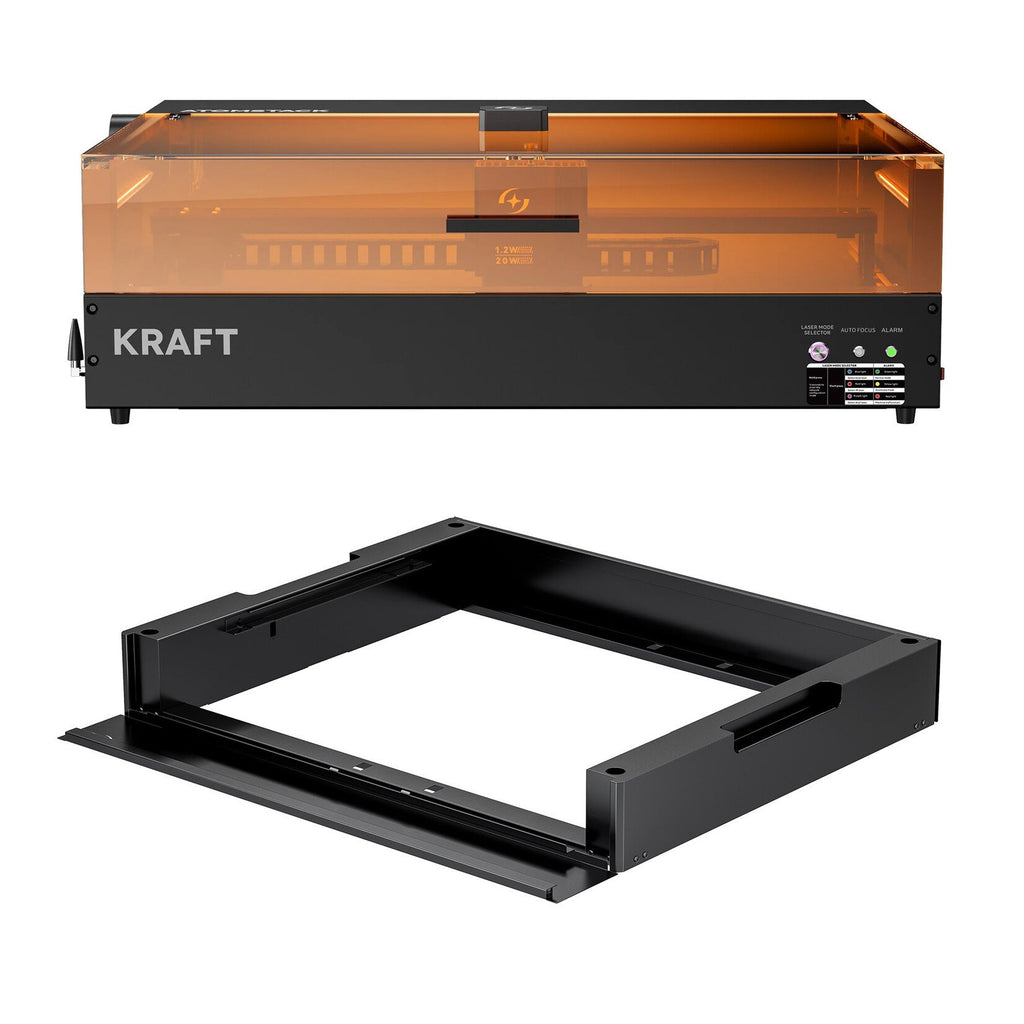

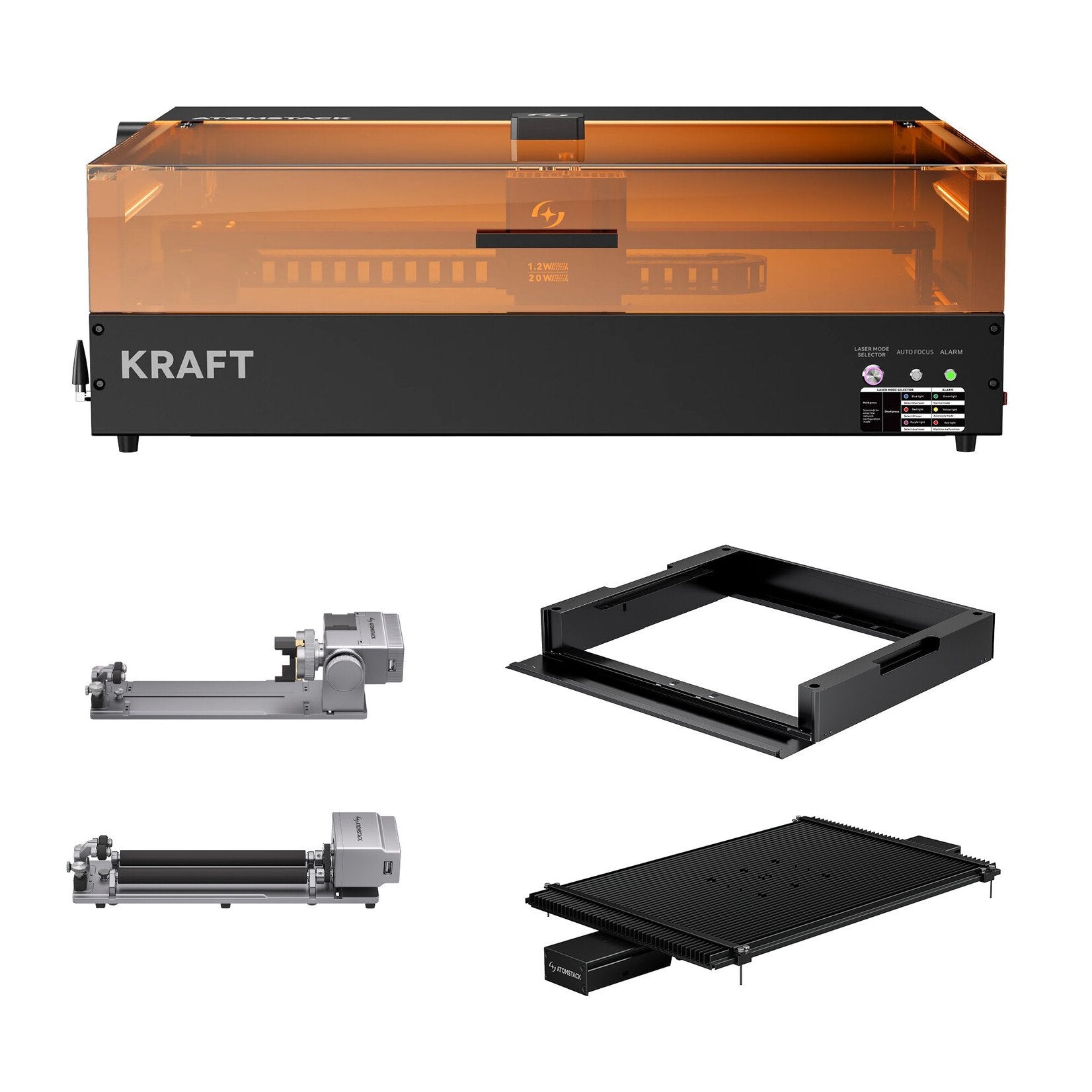

Optional accessories like the R7 Pro Conveyor feeder, R8 Rotary Chuck, R6 Rotary Roller, and Kraft H4 Riser Base (sold separately) expand the possibilities even further for more complex or specialized work.
Clean air with the AtomStack D4
Connect your AtomStack Kraft 40 W with the AtomStack D4 air purifier to filter airflow. Eliminate odors, and enjoy a quieter workspace thanks to the noise-reducing enclosure.
Technical Specifications
Laser System
Laser Power: 40 W diode
Spot Size: Diode: ~ 0.08 × 0.12 mm
Maximum Speed: Up to 600 mm/s
Dimensions & Workspace
Machine Dimensions: 31.2 × 24 × 10.3 in (79.1 × 61 × 26.1 cm)
Working Area: 19.6 × 12.6 in (50 × 32 cm)
31.5 × 19.7 in with R7 Pro Conveyor Feeder
Camera
Built-in Camera: 16 MP resolution
Safety
Certification: IEC 60825-1 Class 1 laser safety
- Class 1 enclosed housing
- Automatic fire extinguisher
- Emergency stop button
- Open lid detection
- Tilt detection
Software & Compatibility
Supported Software: AtomStack Studio, AtomStack App, LightBurn, LaserGRBL
File Formats: DXF, JPG, PNG, BMP, SVG, GIF
Supported Materials
Wood, leather, denim, ceramics, MDF, anodized aluminum, dark opaque acrylic, dark glass, kraft paper, coated metals, brushed stainless steel, stone, PCB boards and more
What is in the box
- Kraft 40 W laser cutter
- Honeycomb panel
- Air assist accessory (SF60)
- Focusing block and tools
- USB drive and Safety USB key
- Calibration card
- USB cable
- Power cable and adapter
- Dust-free cloth
FAQ
1.What materials can the AtomStack Kraft 40W Diode work with?
It is designed for materials such as wood, dark acrylic, leather, and other common engraving and cutting materials. Official listings highlight cutting wood up to about 18 mm and dark acrylic up to about 15 mm under suitable conditions.
2. Is this machine suitable for schools or maker spaces?
It can be a stronger fit than open-frame lasers because it uses an enclosed Class 1 design and includes multiple safety features. That said, schools should still confirm ventilation, supervision, and compliance requirements internally.
3. Does it work with LightBurn?
Yes. Verified listings state compatibility with LightBurn, LaserGRBL, and AtomStack software options.
4. Does it include a camera?
Verified sources list a 16 MP camera, which helps with alignment and material placement.
5. Is it good for small business production?
Yes, especially for shops producing signs, gifts, branded items, and short-run custom work. The combination of higher power, enclosure, camera, and speed makes it more practical than basic hobby units. This is an inference based on the verified spec profile and intended use cases.
